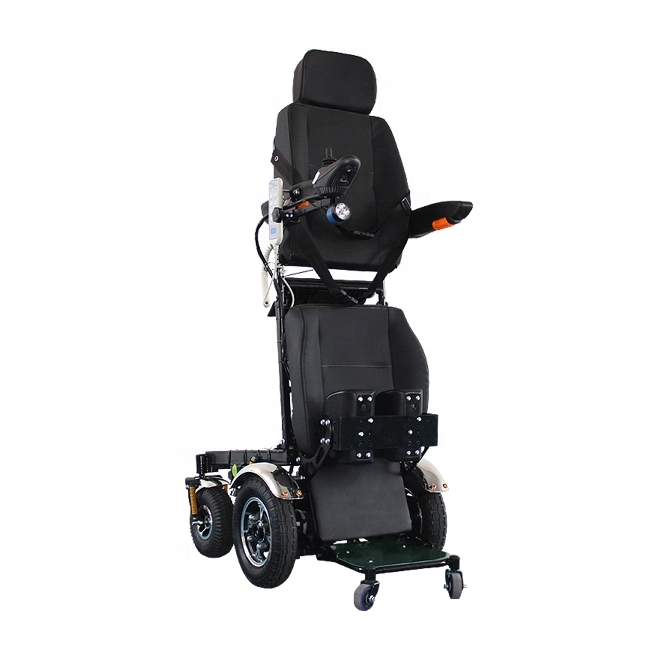

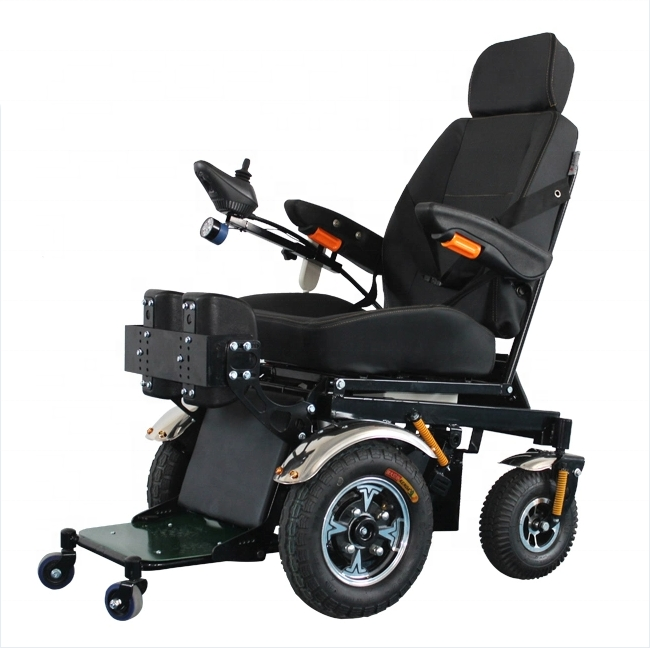

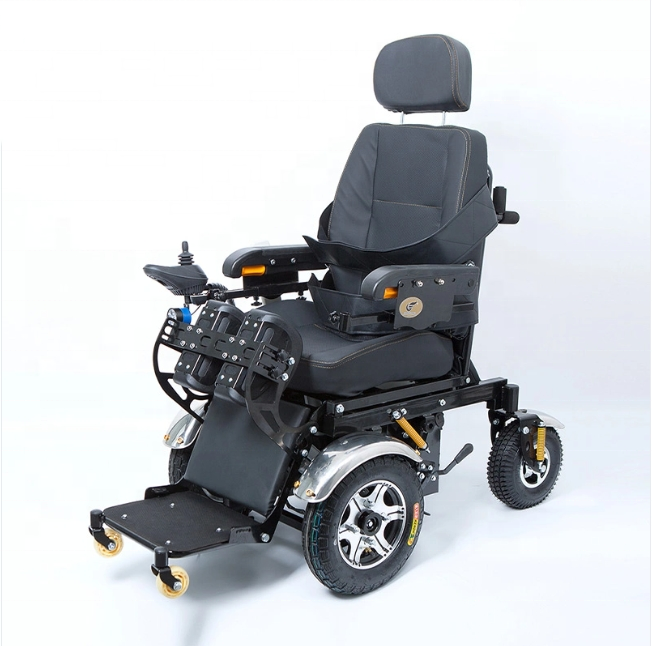

IM210 Standing Power Electric Wheelchair

The IM210 Standing Power Electric Wheelchair is an advanced standing electric wheelchair designed to empower individuals with limited mobility. It allows users to move and even stand comfortably and confidently, promoting greater independence and well-being. With electric standing and reclining functionality, users can smoothly transition from sitting to a fully supported standing position at the touch of a button, enabling eye-level social interactions and improving circulation. Dual 350W motors provide smooth, reliable power with a top speed of 8 km/h, ideal for safe indoor navigation. An intuitive joystick control and compact design ensure easy maneuverability in both home and institutional settings. Safety and comfort are paramount: the Uplift’s sturdy steel frame supports up to 150 kg, and it features padded supports plus an automatic braking system to keep the chair stable during transfers and standing. CE-certified for quality and safety, the Uplift helps users stand tall with confidence, offering a new level of freedom and independence in daily life.

Key Features

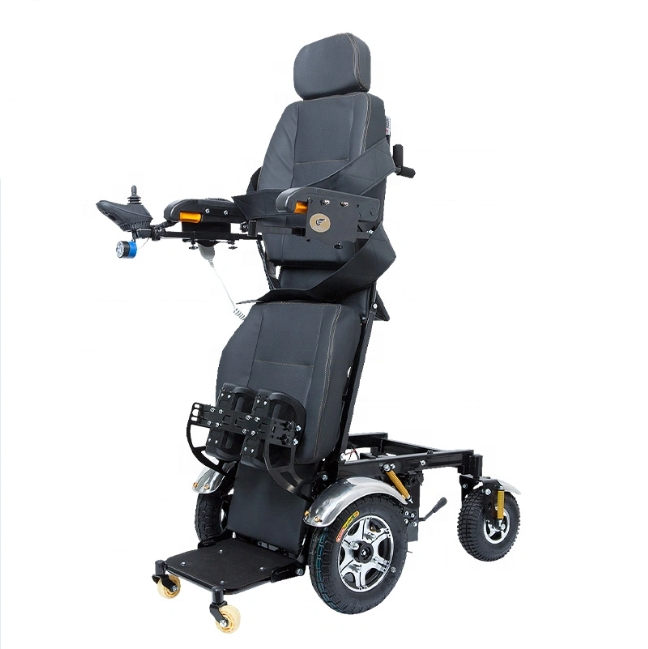

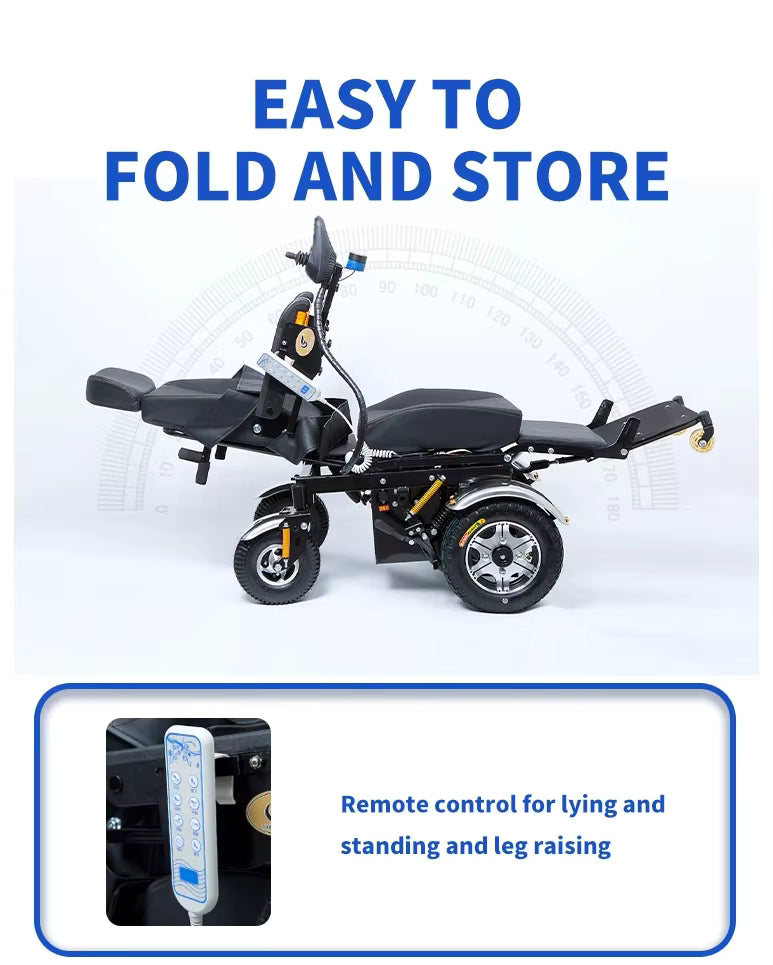

Powered Standing & Reclining
Electric actuators raise the user to a standing posture or recline for rest at the push of a button. This enhances circulation, pressure relief, and enables face-to-face interactions.

Dual-Motor Drive
Two high-torque 350W motors deliver a smooth ride with 8 km/h top speed, ensuring reliable mobility on various surfaces. The chair can even be driven while in a standing position (at reduced speed for safety).

Indoor/Outdoor Versatility
Compact wheelbase and a tight turning radius make it easy to maneuver through doorways and home spaces. The powerful motors and suspension can handle up to 12° inclines for ramps or outdoor thresholds.

High Weight Capacity
Durable steel frame safely supports users up to 150 kg (330 lbs), accommodating a wide range of body types and enabling bariatric support.

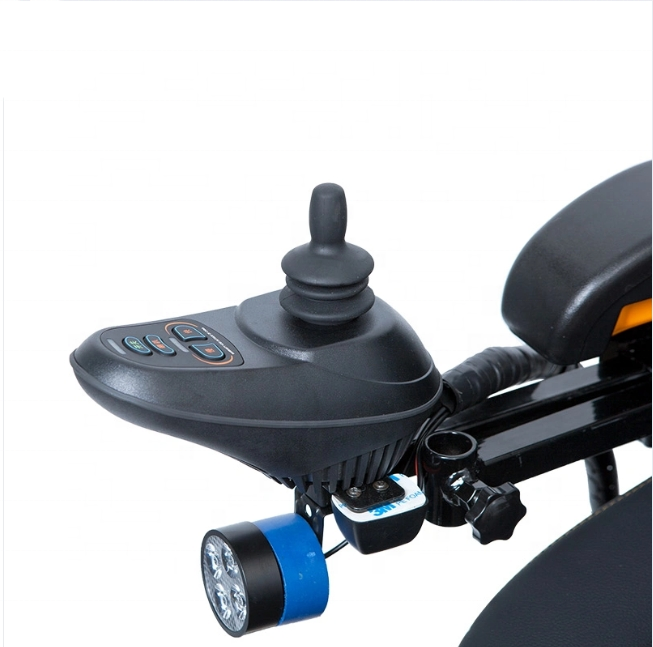

User-Friendly Controls

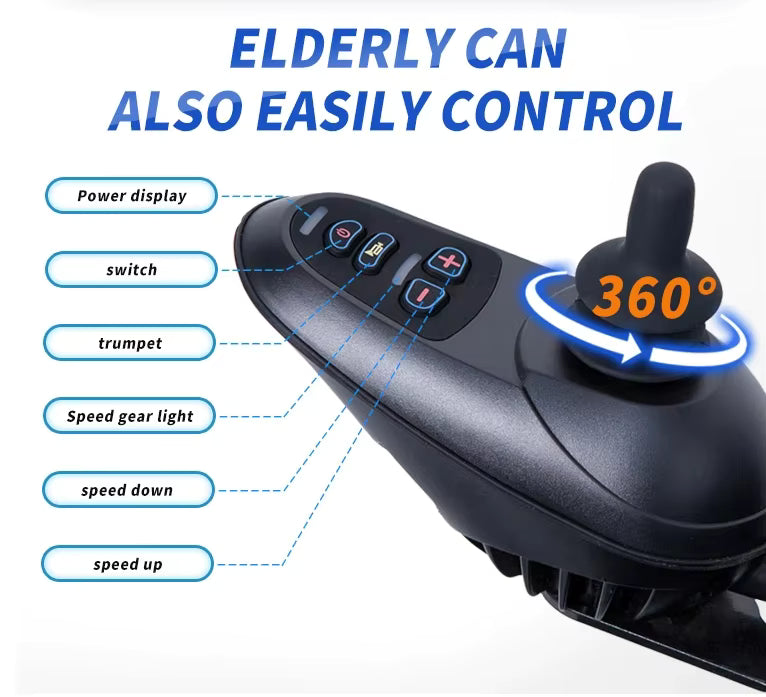

Ergonomic joystick controller (360° thumbstick) provides simple, precise steering and speed control. The controller can be mounted on either armrest for user convenience.

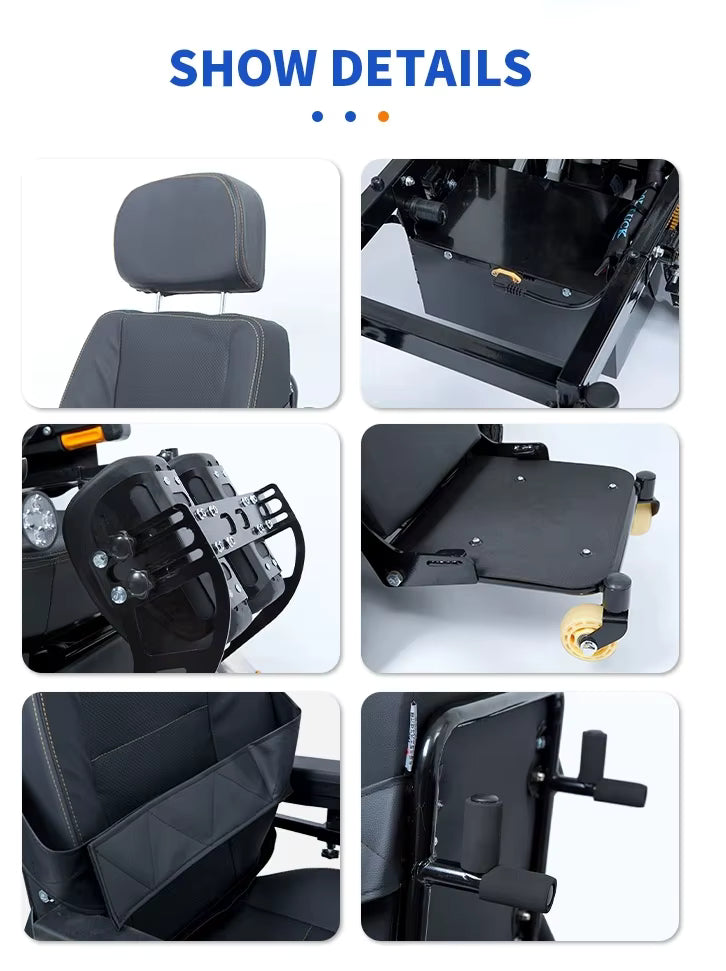

Premium Comfort & Support
Fully padded seat, backrest, headrest, and adjustable knee/leg supports keep the user comfortable and secure when sitting or standing. The seating system is designed for all-day use with easy-to-clean materials.

Advanced Safety Features
Intelligent electromagnetic brakes automatically hold the chair safely in place when the joystick is released. Anti-tip wheels and a lap belt come standard, keeping the user stable during movement and transitions.

Technical Specifications

Dimensions (L × W × H): 1120 × 660 × 1100 mm (approx. 44″ × 26″ × 43″) for a compact profile that fits through standard doorways.
Seat Width × Depth: 450 mm × 450 mm (18″ × 18″), with adjustable cushions to suit individual needs.
Weight Capacity: 150 kg (330 lbs) maximum user weight.
Max Speed: 8 km/h (5 mph) on level surfaces; programmable speed settings for indoor control.
Drive Motors: 2 × 350 W DC motors (rear-wheel drive) providing robust torque and smooth acceleration.
Battery System: 24V 40Ah rechargeable battery pack (sealed lead-acid or lithium option). Delivers up to ~30 km range per charge, with 6–8 hours charging time.
Turning Radius: ≈0.8 m (32″) turning radius – capable of 360° rotation in place for excellent indoor maneuverability.
Gradeability: Supports 8° continuous incline (max 12° for short periods) – handles ramps and slight slopes with ease.
Braking System: Electromagnetic regenerative brakes – auto-engage when joystick is released, providing secure stops on flat ground or slopes.
Frame Material: Reinforced steel chassis with anti-corrosion coating; total chair weight ~125 kg (with batteries).
Additional Features: Front and rear casters with suspension for a smoother ride; integrated LED safety lights; fold-down footplates; removable tray table and storage pouch (optional accessories).

Certifications

CE Certified: Complies with European Union Medical Device regulations and safety standards (Conformité Européenne mark).
Quality Standards: Manufactured under strict quality control (ISO 13485 medical device quality management).
(Note: FDA clearance pending for US market use, if applicable.)

Safety Guidelines

Wear Safety Belts & Supports
Always fasten the provided lap belt and use the knee/leg support pads before activating the standing function. These keep you securely positioned during raising/lowering.

Operate on Safe Surfaces
Use the standing feature on level ground. Do not exceed the recommended incline (8°) when driving, especially while in a raised position, to prevent tipping.

Stationary During Transitions
Bring the wheelchair to a complete stop before standing up or reclining. Do not drive at full speed while standing – if movement is necessary, use the lowest speed setting and caution.

Keep Clear of Moving Parts
Ensure hands, clothing, and obstacles are clear of the seat and lift mechanics when adjusting positions. Never let children or pets play around the wheelchair during operation.

Routine Checks
Before each use, check that all wheels, motors, and brakes are functioning properly. Charge the battery as recommended and keep tires inflated to the proper pressure. Refer to the user manual for maintenance schedules.

Assistance if Needed
In institutional settings or for new users, have a caregiver or technician nearby when using the standing function for the first time. Follow all training and guidelines provided by Inclusive Motion to use the Uplift safely and confidently.
