IM230 Intelligent Assistive Walking Robot

Intelligent Assistive Walking Robot

Give independence, mobility, and confidence back to those with limited mobility. The Intelligent Assistive Walking Robot is a state-of-the-art mobility aid that seamlessly combines a wheelchair, standing trainer, and walking assistant in one smart device.

Key Benefits

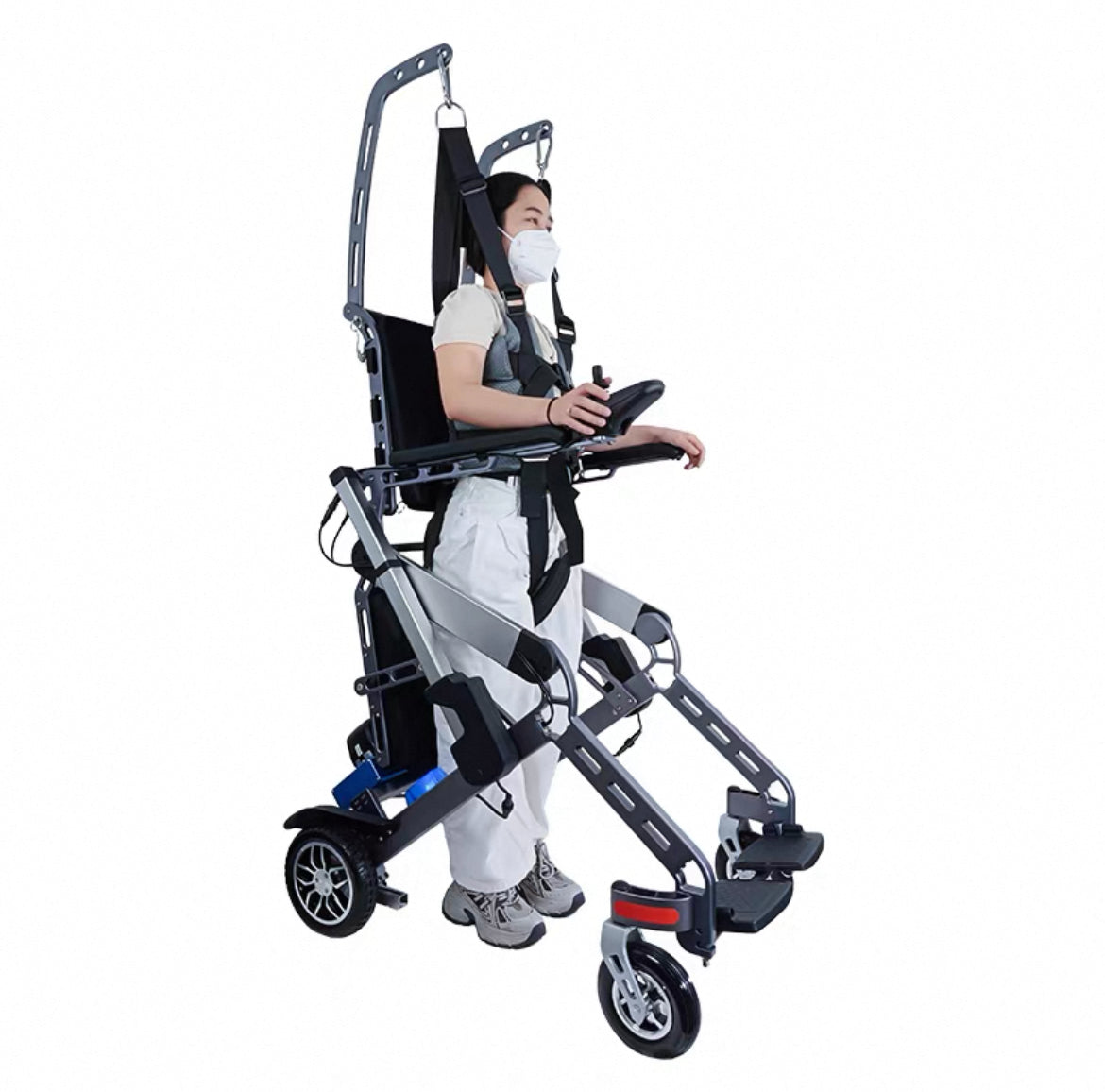

• Independence & Mobility – Users can easily transition from sitting to standing and practice walking safely.

• Comprehensive Training – Supports gait training, balance training, weight reduction exercises, and overall limb rehabilitation.

• Dual Modes – Operates in both manual push and electric mode, ensuring peace of mind even without power.

• Improved Quality of Life – Reduces caregiver burden while enhancing daily mobility, freedom, and dignity.

Features

• Smart Control – Easy joystick operation with one-touch switching between sitting and standing.

• Flexible Movement – Universal wheel design for smooth, stable steering and a turning radius under 1m.

• Safety First – Electromagnetic braking for instant, stable stops and foldable anti-slip pedals for safe climbing.

• Powerful Performance – Dual 250W brushless motors with smooth acceleration and stable drive.

• Durable Build – Premium frame construction with a 100kg load capacity.

• Long Battery Life – 24V 10.4Ah lithium battery offering 15–20 km per charge.

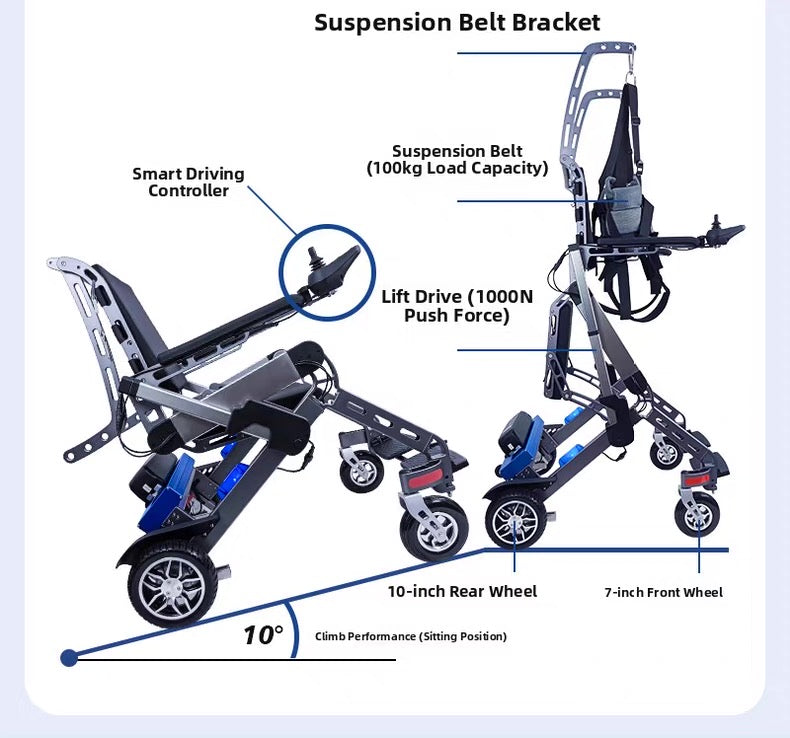

Product Specifications

• Motor: 24V, 250W × 2 (brushless)

• Battery: 10.4Ah lithium

• Range: 15–20 km

• Load Capacity: ≤100 kg

• Speed: ≤6 km/h

• Obstacle Height (sitting): ≥40 mm

• Gully Width (sitting): ≤100 mm

• Steepness (sitting): 10°

• Dimensions: 1050 mm × 690 mm × 1090 mm (sitting) / 2000 mm height (standing)

• Turning Radius: ≤1000 mm

This innovative assistive robot is more than a wheelchair—it’s a step toward independence, confidence, and a better quality of life.
